The Ncam Mk2 Camera Bar, Connection Box and Server's modular design and compact footprint offers the ultimate in flexibility and robustness as well as allowing for a host of mounting options.

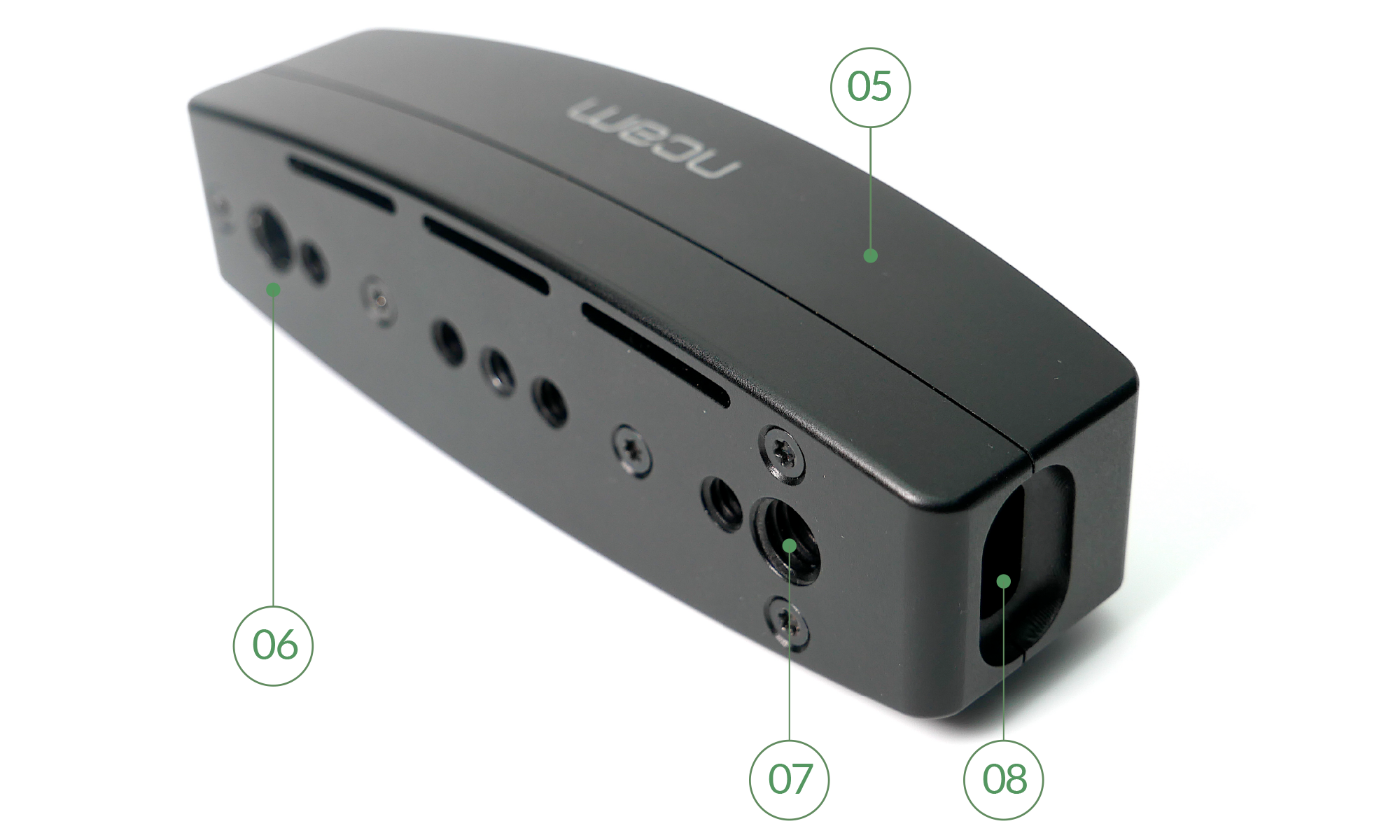

A small, rugged device, which connects to the Mk2 Ncam Server, consisting of various optical and inertial sensors.
5 x 1/4"-20 UNC and 2 x 3/8"-16 UNC threads
Reserved for future developments
Offers excellent shock resistance and thermal management
Lockable connection providing power and bi-directional data
"When we walked off the set for the day, we not only had better, more informed and more intuitive camera moves that felt more in the style of the rest of the sequence – we also had our post-vis already done."
Rob Bredow, VFX Supervisor
SOLO: A STAR WARS STORY
"You see a lot of tracking systems but they are clunky and hard to integrate. Ncam is portable and it is plug and play. It integrates with our software and is completely flexible. Ncam is unique."
Jeremy Jones, Director of Television Products
THE WEATHER CHANNEL
"We had a unique stage and venue layout that left little room for error. Ncam did an excellent job of reacting to the ever changing challenges during a live on-site production. From an 80- foot tall Marshmello to Fortnite characters standing right next to players, the addition of AR absolutely elevated the quality of the broadcasts."
Michael Gay, Epic Games
DIRECTOR OF CINEMATIC PRODUCTION, FORTNITE WORLD CUP
"Everything you see in the background of the demo was final pixel VFX, which is simply incredible,” . “After the demo was done, I was watching it and I couldn’t remember seeing a market stall on set. It turns out even I was fooled!"
Tupac Martir, Creative Director & Founder
SATORE STUDIO
"The remote workflow was pretty much the same as the studio setup. Ncam camera tracking is so flexible, it can track anywhere. We didn’t even need to create external points in the environment – it just worked."
Fernando Svevo, Broadcast Manager
RIOT GAMES, BRAZIL
Mk2 Connection Box: A compact, lightweight and silent running device, connecting the Mk2 Camera Bar to any Ncam Reality compatible server via ethernet.
Connection for UART based encoders
Lockable USB-C connection
Status LED
DCIN 8-34V, 7.5/20 Watts (typical/max)
Connection for RS232 based encoders
4 x 1/4" - 20 UNC
1 Gigabit Ethernet Port
WiFi 802.11 b/g/n @2.4Ghz
The Mk2 server provides a streamlined method to control the system, as well as allowing the system to transmit tracking data completely wirelessly via third party solutions.
Anodised aluminium offering excellent protection and performance
Lockable USB-C connection
SDI input for Mk2 Server
WiFi connection for control of Ncam Reality software via web based UI
Standard USB ports for peripherals
Power input
Ethernet port preconfigured as DHCP
HDMI port for external monitor
Connection for UART based encoders
Optional SDI loop-through
Connection for RS232 based encoders
WiFi connection for control of Ncam Reality software via web based UI
Display port for external monitor
8 x 1/4”-20 UNC and 9 x 3/8”-16 UNC
Ethernet port for sending tacking data
Mk2 Camera Bar
Mk2 Connection Box: in lieu of, or in addition to, Mk2 Server
Mk2 Server: in lieu of, or in addition to, Mk2 Connection Box
Camera Bar connection cable

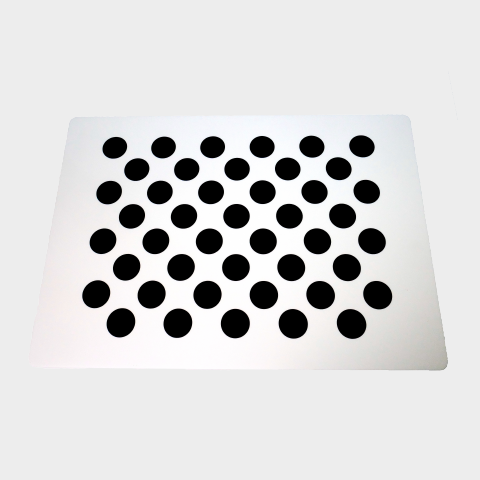

Calibration charts x 2
External power supply
Backfocus chart
Digital broadcast cameras with HD SDI monitoring
Digital film cameras with HD SDI monitoring
Film cameras with HD video tap plus timecode
ENG: Zoom
Cine: Prime & Zoom (Spherical & Anamorphic)
Encoders: Ncam Passive FIZ encoders
Smart Lenses: Arri LDS, Canon, Cooke /i, Fujinon, Zeiss eXtended
Follow Focus: Arri, Cmotion, Preston, Teradek
Ncam proprietary: Stored and selectable from database
1920/1080 HD SDI with timecode
23.98, 24, 25, 29.97, 30 fps frame rate
Progressive or PsF (not interlaced)
Multiple optical and inertial sensors consisting of a pair of stereo cameras, an RGB camera and an IR projector, plus IMU device; 1 bar per camera
Position – 3 mounting points: 1x ⅜" -16 UNC & 2x ¼"-20 UNC threads
From Mk2 Server
Supplied USB-C to Ncam Mk2 Server
130mm X 38mm X 39.10mm
286g
One Connection Box per camera
Bespoke, silent, Intel Atom chipset
Web interface: Wired or wireless connection via web based GUI
Ncam Reality
On camera, rig, etc.
DCIN 8-34V, 7.5/20 Watts (typical/max)
90mm x 60mm x 120mm
400g
One Server per camera
Bespoke workstation
Web interface: Wired or wireless connection via web based GUI
Ubuntu Linux
Ncam Reality
Mobile – on camera or rig using ⅜" -16 UNC & ¼" -20 UNC threads
2.5A @ 12v
152.00 X 177.38 X 53.50mm
992g
Understanding the power of Ncam
Hirose (M) to DC in
4 pin XLR Y split DC in
3 pin Fischer (M) DC in
D-Tap (M) DC in
2 pin Lemo (M) DC in
External Encoders for Focus & Zoom (0.5, 0.6 & 0.8 pitch gears)
C-motion Camin to 7pin Lemo
RJ11 to 7pin Lemo adapter
Prestion Interface to 7pin Lemo
20pin Y-Splitter Cable for Focus & Zoom
Canon Smart Encoder Interface to 7pin Lemo (m)
/i & XD Port 4pin Lemo (m) to 7pin Lemo (m)
Fujinon Smart Encoder Interface to 7pin Lemo (m)
IR Attachment
Canon Serial Cable 20pin Hirose (m) to 7pin Lemo (m)
Fujinon Serial Cable 20pin Hirose (m) to 7pin Lemo (m)
Preston Serial Cable 4pin to 7pin lemo (m)
Tilta Serial Cable 7pin to 7pin lemo (m)
Teradek Serial Cable to 7pin lemo (m)
